Delta oogstband

Delta harvesting belthydraulically operated
and rollable through trailer

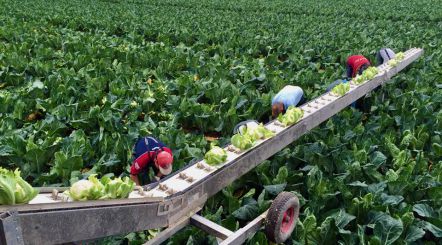

DELTA HARVESTING BELT

The Delta harvesting belt is characterized by its long length, it can be constructed up to a length of 16 metres. This makes the Delta harvesting belt ideal for harvesting fields with fixed driving paths. The first four meters of the cutting surface can be folded up semi-automatically so that it is still compact during transport and storage. Because the changeover time between the harvesting trailers is less than 3 minutes, we approach a continuous harvesting process with minor investment.

DELTA HARVESTING BELT
specs
  • Length: 12 to 14 meters
  • Width: 27cm/37cm/47cm or 57cm
  • Unique self supporting construction
  • Speed stepless adjustable
  • Practical capacity 4.375 pieces/hr. in EPS
  • 4-meters semi-automatically foldable
  • Automatic belt tensioner
  • Long lasting hydraulic drive drum
  • Construction strong and lightweight, from 150kg
  • Plug-and-play on your tractor
  • CE-marked
  • Designed for your equipment
productsheethttps://www.beetsaluminium.eu/library/general/1684315133.3587.pdf

ADD-ONS

Adjustable support
Adjustable support

The support is hydraulically adjustable to quickly compensate level changes in the field

Endstop
Endstop

If the endsensor detects a crop, it activates the start/stop function of the harvesting belt

Crop washer
Crop washer

The cropwasher is placed on the inclining part of the harvesting belt where multiple nozzles clean the product

Mount and move system
Mount and move system

Grooved aluminium wheels allows you to mount the harvesting belt to the trailer and roll it from front to the back

LED-Lights
LED-Lights

LED-lights on the flat part in the field shine direct light on the crop to improve sight during dark hours

Wheels
Wheels

Eases transport in the field and optimises the mounting process to the harvesting trailer

High sides
High sides

High sides prevent that the crops fall off from the belt and are available in different heights

Level adjustment
Level adjustment

Adjust the length of the hydraulic cilinder so that the belt remains horizontally

COMPATIBLE WITH

swipe gesture

video

Why using the Delta harvesting belt?8 reasons to use the DELTA HARVESTING BELT
  • No soil compaction due to fixed roads
  • 40% more efficiency during harvest
  • Eliminates movement to trailer
  • Extremely short set-up time
  • Crop remains clean and undamaged
  • Practical capacity of 4.375 pieces/hour
  • Plug-and-play on existing equipment
  • For various type of crops
